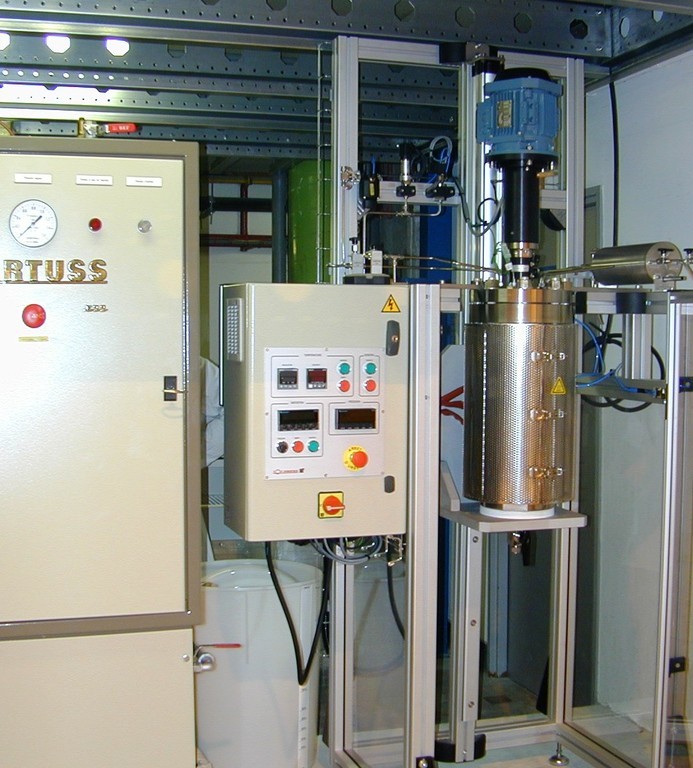

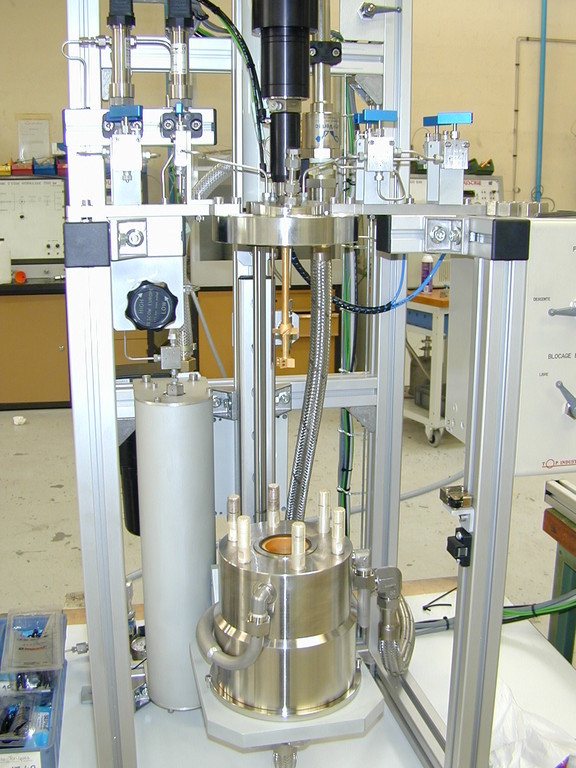

Stirred Bolted Closure Reactor

Bolted autoclave



  Volume:  20ml  to 50 liters

•  Bolted closure with metallic  gasket

  Working pressure : 10 to 5000 bar.

•  Working temperature :  -50° to 900°C

•  Material : stainless steel, Hastelloy, inconel , titanium…

•  Magnetique stirrer : 30 , 95 Ncm , 10Nm

  Optional Atex. (maximum  pressure 700 bar )

•  Impeller : anchor , rushton ,  gazing effect…

•  Heating shell or jacket

•  Cooling by vortex (Temperature rate <  20° / mn)

•  Gas / liquid  injection and sampling

•  SCADA pressure , stirrer speed , T°…

•  In accordance with PED 97/23



Fixed bed Catalysis Reactors

Fixed bed catalysis reactor



  • Volume: 20ml to 10liters.
  • InnerØfrom1/8" to 5"
  • Working temperature: up to 900°C
  • Working pressure: 10 to 1000 bar
